CONNECTION OF ANTENNA AND POWER CABLES

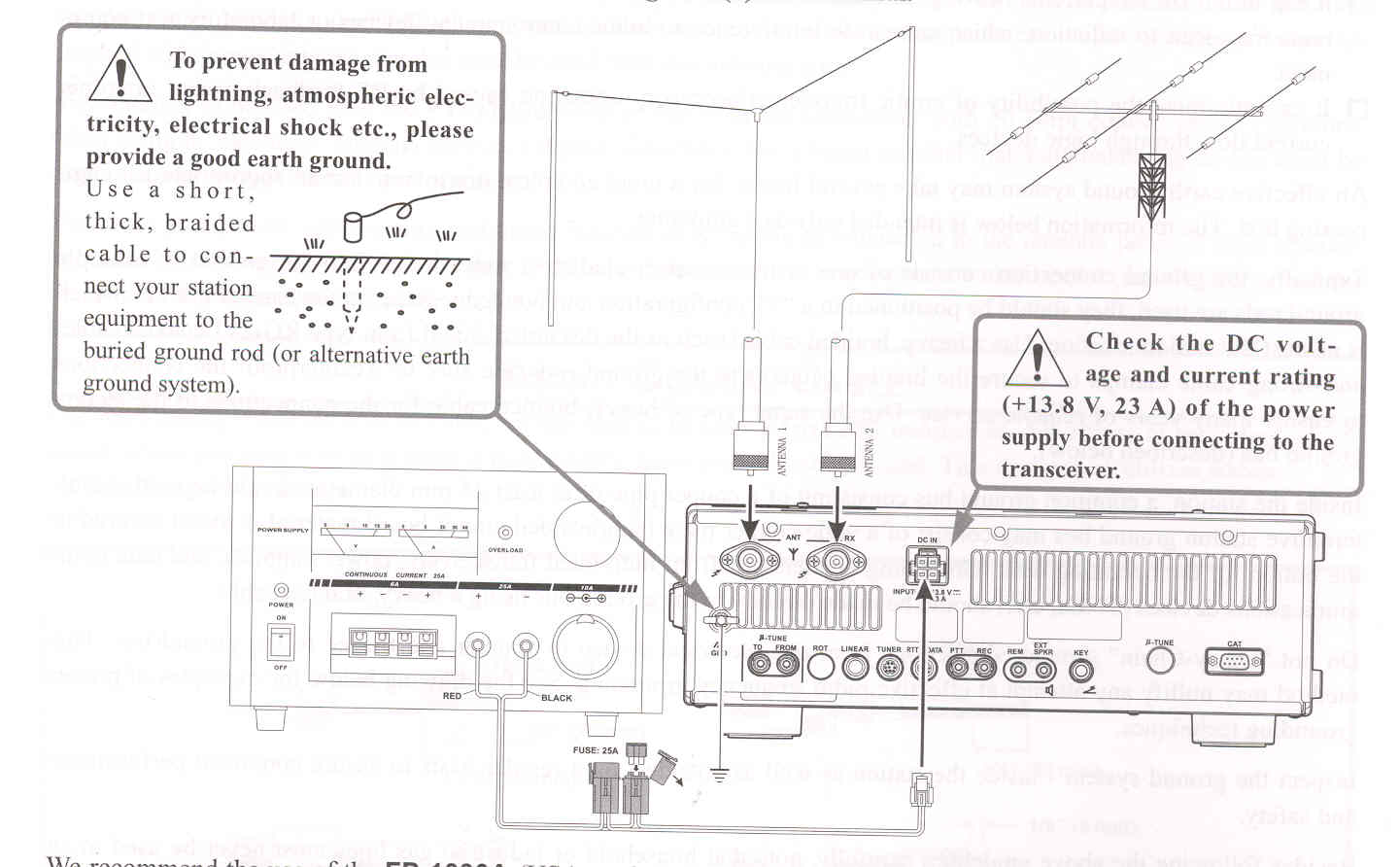

Please follow the outline in the illustration regarding the proper connection of the antenna coaxial cables, as well as the DC power cable. The DC power connector for the FTDX1200 must only be connected to a DC source providing 13.8 Volts DC (±10%), and capable of at least 23 Amperes of current. Always observe proper polarity when making DC connections:

     The RED DC power lead connects to the Positive (+) DC terminal.

     The BLACK DC power lead connects to the Negative (-) DC terminal.


To prevent damage from lightning, atmospheric electricity, electrical shock etc., please provide a good earth ground.

Use a short, thick, braided cable to connect your station equipment to the buried ground rod (or alternative earth ground system).
Check the DC voltage and current rating (13.8V, 23A ) of the power supply before connecting to the transceiver.

We recommend the use of the FP-1030A (USA market only) AC Power Supply. Other models of power supplies may be used with the FTDX1200, but the 13.8 VDC input voltage, 23 Ampere current capability, and DC cable polarity guidelines described above must be strictly followed.

Note that other manufacturers may use the same type of DC power connections as does your FTDX1200 transceiver however, the wiring comfiguration may be different from that speicfied for your transceiver. Serious damage can be caused if improper DC connections are made; consult with a qualified service technician when in doubt.

The 100 V RF voltage (@ 100 W/50-ohm) is applied to the TX RX section of the transceiver while transmitting.
Do not touch the TX RX section absolutely while transmitting.

Permanent damage can result when improper supply voltage, or reverse-polarity voltage, is applied to the FTDX1200.

The Limited Warranty on this transceiver does not cover damage caused by application of AC voltage, reverse polarity DC, or DC voltage outside the specified range of 13.8 V ±10%. When replacing fuses, be certain to use a fuse of the proper rating. The FTDX1200 requires a 25A blade fuse.

ADVICE:

Do not position the FTDX1200 in a location exposed to direct sunlight.

Do not position the FTDX1200 in a location exposed to dust and/or high humidity.

Ensure adequate ventilation around the FTDX1200 , to prevent heat build-up and possible
      reduction of performance due to high heat.

Do not install the FTDX1200 on an unstable desk or table. Do not place in a location where
      objects may fall onto it from above.

To minimize the possibility of interference to home entertainment devices, take all
      precautionary steps including separation of TV/FM antennas from Amateur transmitting
      to the greatest extent possible, and keep transmitting coaxial cables
      separated from cables connected to homeentertainment devices.

Ensure that the DC power cord is not subject to undue stress or bending, which could
      damage the cable or cause it to be accidentally disconnected from the rear panel DC IN
      jack.

Be certain to install your transmitting antenna(s) so they cannot possibly come in contact
      with TV/FM radio or other antennas, or with power, or telephone lines.

End of "Connections of Antenna & Power Cables"

Cont'd Next Page "Installation & Interconnections"
